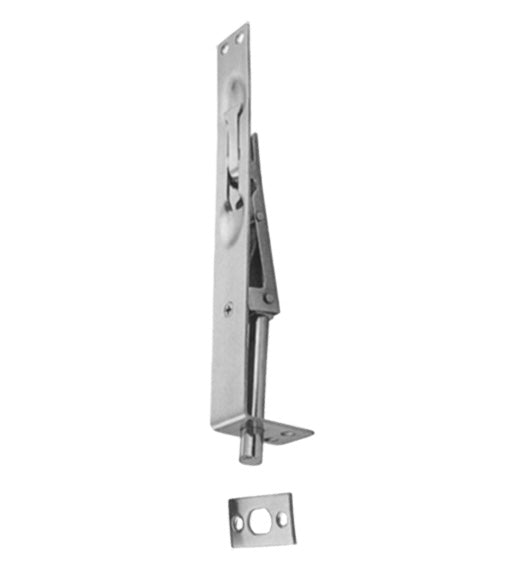

These Brushed Stainless Steel 12" Flush bolts (also known as door edge bolts) are installed into the edge of the door. They use a Flip Style lever that is moved up and down to push the attached rod and bolt into a header or threshold (footer), which locks or unlocks an inactive door. Packaged complete with stainless steel flush bolt assembly, strike plate and mounting screws.

Specifications of AHI-SIG713-630 Flush Door Bolt

• Material: Stainless Steel
• Finishes: Brushed Stainless Steel
• Handle Plate Length: 11-3/4"
• Handle Plate Width: 3/4"
• Bolt Throw: 1/2"
• Strike Plate Length: 1-11/16"
• Strike Plate Width: 7/8"

Sold Individually
