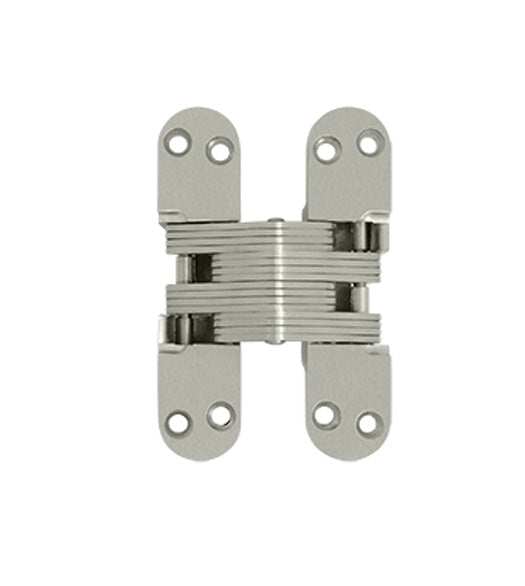

Concealed Hinges are hidden from view when the door is closed. The 4-5/8 Inch x 1-1/8 Inch Invisible Hinge is most often used doors where a clean look is desired. When the door is closed, Deltana's DCH218 Invisible Hinge cannot be seen or tampered with. When opened, the riveted hinge pin is non-removable. The installed hinge is firmly anchored in a deep, full mortise, which assists the screws in supporting the door, assuring a stronger door hinge installation. Package includes a pair of hinges (2 hinges).

For use on 1-3/4" Thick Doors

Also Available:
1-3/8" Thick Door Hidden Hinge
Steel 4-5/8" x 1-1/8" Invisible Door Hinge

Specifications of the 1-3/4 Thick Door Hidden Door Hinges:

• Overall Height: 4-5/8"
• Height center to center: 3-5/8"
• Leaf Width: 1-1/8"
• Knuckle Height: 1-5/8"
• Door Thickness: 1-3/4"
• Hinge Material: Pressure cast zinc housing and 304 Stainless Steel links
• Deltana DCH218 Hinge Specifications (PDF)

*Sold in Pairs (2 Hinges)
