Satin Nickel Ball Catch, DWD-BC712-US15
$6.91
Vendor: AHI
SKU: DWD-BC712-US15
Type:
FREE GROUND SHIPPING ON ALL ORDERS ABOVE $250.00!

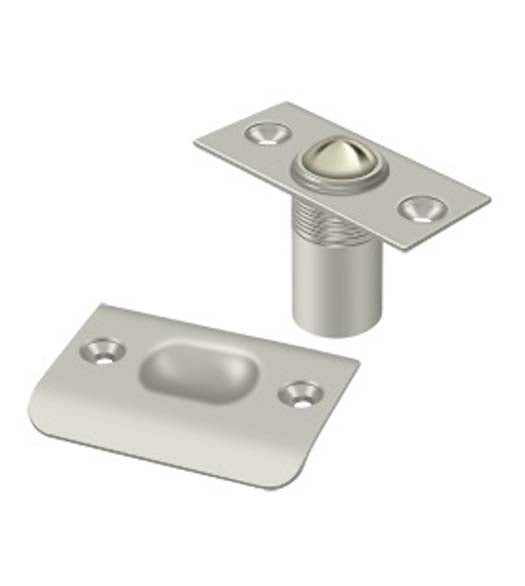

DWD-BC712-US15, Satin Nickel Ball Catch
These Satin Nickel ball catches are installed in the top, bottom and/or side of the door to hold them closed. An adjustable ball catch, the ball retaining cylinder threads into the catch face plate for 3/8" of adjustment. Used in conjunction with dummy hardware. Supplied with strike and mounting hardware, made of solid brass.
Specifications for the Door Ball Catch:
- Adjustment Length: 1/2"
- Strike Plate Length: 2-1/8"
- Strike Plate Width: 1-3/8"
- Material: Solid Brass
- Corner Type: Square
- Catch Face Plate Length: 2-1/8"
- Catch Face Plate Width: 1"
- Depth: 1-1/4"
- Finish: Satin Nickel
- DWD-BC712-US15 Specifications Diagram (PDF)
Sold Individually
