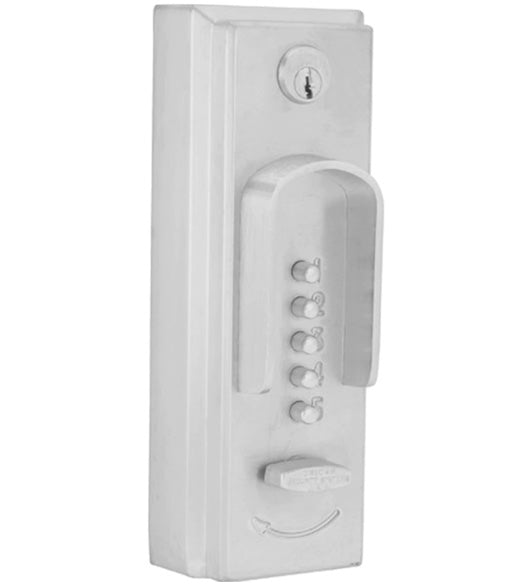

This Mechanical Pushbutton Lock Panic Device Trim eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. It provides exterior access by entering a combination code, while allowing free egress at all times by an Exit Device (not supplied) from the interior. The KABA 2015 Series Mechanical Pushbutton Exit Trim is a fully mechanical lock, thus eliminating need for battery replacements. It is compatible with most leading brands of Panic Devices. Single access code: one easy-to-manage code for all users.

Features and Specifications of the KABA 2015 Key Pad for Panic Bar:

• Material: Heavy-duty, cast front housing.
• Finish: Satin Chrome
• Height: 8-5/8"
• Width: 3-1/8"
• Overall Projection: 2-3/4"
• Minimum Stile: 3/18"
• Door Thickness: 1-3/8" - 2-1/2"
• Handing: non-handed
• 6-pin tumbler cylinder
• Tailpiece: 2-3?4" (70 mm) adjustable tailpiece
• Weather resistant.
• Vandal resistant, solid metal pushbutton numeric keypad.
• Package includes: installation manual, full-scale template, combination change keys, and required lock installation hardware only.
• KABA 201526D41 Specifications (PDF)

Exit Device not included. Please Click Here to order a compatible Exit Device.
