4-3/4 x 5-1/2 Wrap Around Plate for Installing Marks Levers, Don-Jo 75-CW

$43.65 $37.85

Vendor: Don-Jo
SKU: DJO-75-CW-10B
Type:


FREE GROUND SHIPPING ON ALL ORDERS ABOVE $250.00!

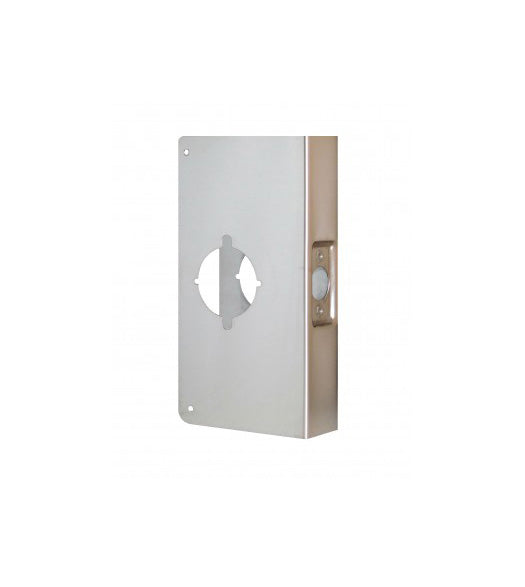

Don-Jo 75-CW, 4-3/4" x 5-1/2" Wrap Around Plate for Marks and Medco Levers

This wrap around plate protects your doors from entry tools and tampering. 2.125 Inch Bore Hole has special cut-outs specifically designed for Marks and Medco Style Levers. It is 4.750 inches wide and 5.50 inches high with a 2.750 inch backset.

For use with PDQ Commercial Lever Locks, Imperial USA Commercial Lever Locks, and Deltana Commercial Lever Locks.

Don-Jo 75-CW Features:

  • Steel 22 gauge (.032) construction
  • Assorted finishes available
  • Built-in stainless steel threaded insert for tube latch
  • Long lasting and secure mounting of latch and bolt
  • Heavy duty stainless steel trim screws
  • Permanent holding power eliminates loosening of latch mounting screws

Specifications of the Don-Jo 75-CW Wrap Around Plate:

  • Plate Height: 5-1/2"
  • Door Face Plate Width: 4-3/4"
  • Door Edge Plate Width: 1-3/4"
  • Door Thickness: 1-3/4"
  • Bore Hole Backset: 2-3/4"
  • Bore Hole Diameter: 2-1/8"
  • Don-Jo 75-CW Dimensions Diagram (PDF)
Don-Jo 75-CW Specifications

Sold Individually
