6 Inch Concealed Screw Surface Bolt, Deltana 6SBCS

$26.90 $20.89

Vendor: Deltana
SKU: DEL-6SBCS-CR003
Type:


FREE GROUND SHIPPING ON ALL ORDERS ABOVE $250.00!
Deltana 6SBCS, 6 Inch Contemporary Door Bolt

This 6 Inch Contemporary Door Bolt with concealed screws is supplied with 3 different strikes, (universal, mortise, and angle strike) for easy installation in almost any application. Contemporary styled with a fully concealed screw design improves security and appearance. The surface mounted door bolt is designed with a unique ball bearing tension system that holds the door bolt in any position, pervents scratching of the bolt, and ensures a smooth sliding action.

6 Inch Contemporary Door Bolt Specification

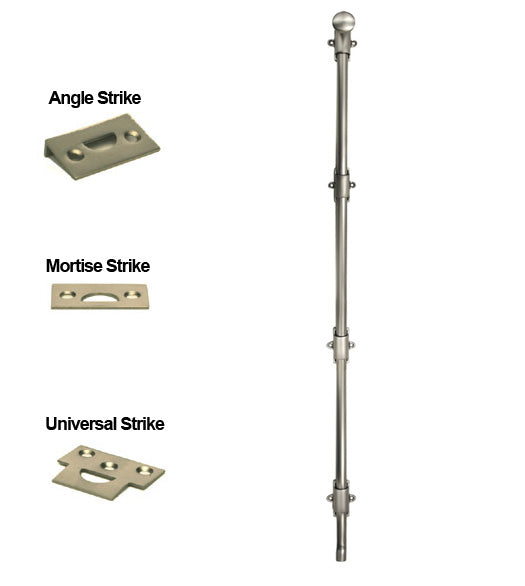

Deltana Door Bolt Strike Plates

Also available is other lengths: DEL-2SBCS 2 Inch Door Bolt - DEL-4SBCS 4 Inch Door Bolt - DEL-8SBCS 8 Inch Door Bolt - DEL-12SBCS 12 Inch Door Bolt

Specifications for the Deltana 6SBCS Contemporary Door Bolt:

  • Material: Solid Brass
  • Bolt Length: 6"
  • Knob Diameter: 5/8"
  • Total Projection: 15/16"
  • Bolt Width: 9/16"
  • Bolt Throw: 1-1/16"
  • Door Bolt Strikes: Universal, Mortise, and Angle.
  • Includes new brass #6-3/4" mounting screws.
  • Deltana 6SBCS Dimensions (PDF)

No matter which finish you choose for the outside, it will still be solid brass material inside.
