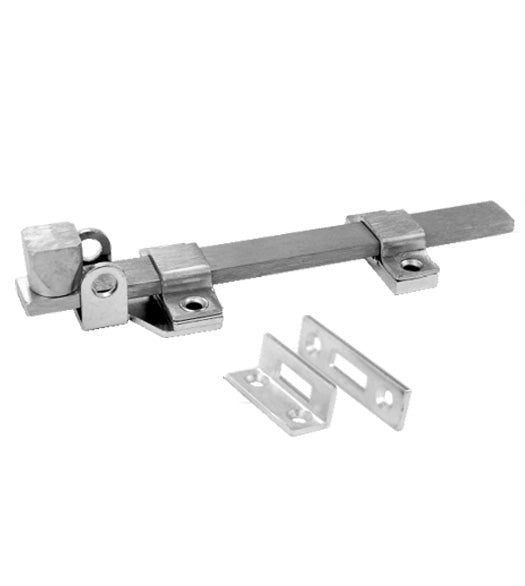

These 8" padlocking surface mounted door bolts are made of steel with a Brushed Chrome finish. Can be locked with a 5/16" diameter shackle or smaller padlock.

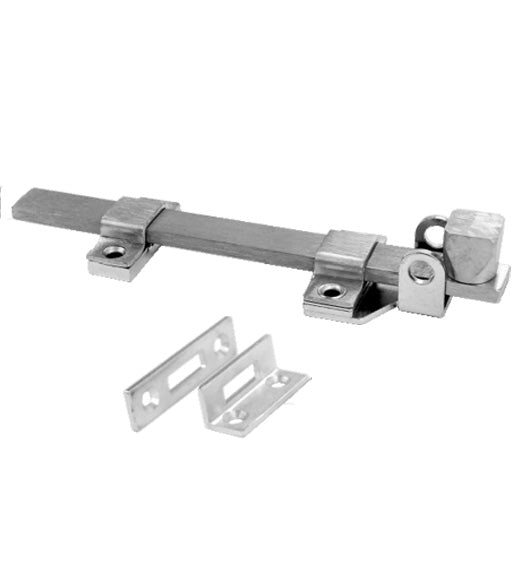

Also available: Stainless Steel Padlocking Slide Bolt

Specifications of the Don-Jo 1582-626 Padlocking Door Bolt:

• Bolt Length: 8"
• Bolt Width: 3/4"
• Bolt Thickness: 1/4"
• Bolt Projection: 3/4"
• Max Projection at Knob: 1-3/8"
• Bolt Throw: 1-1/4"
• Padlock Hole Diameter: 3/8"
• Guide Plate Width: 2"
• Mortise Strike Length: 3"
• Mortise Strike Width: 3/4"
• Rim Angle Strike Length: 2"
• Rim Angle Strike Width: 3/4"
• Material: Steel
• Brushed Chrome Finish
• UL Rated
• Don-Jo 1582-626 Dimensions (PDF)

Packaged complete with mortise strike plate, rim angle strike plate, new guides, and mounting screws. (*Padlock Not Included). Use Schlage Kryptonite Padlock with 5/16 Diameter Shackle or Mul-T-Lock Medium Duty Padlock with 5/16 Diameter Shackle.

Sold Individually.
