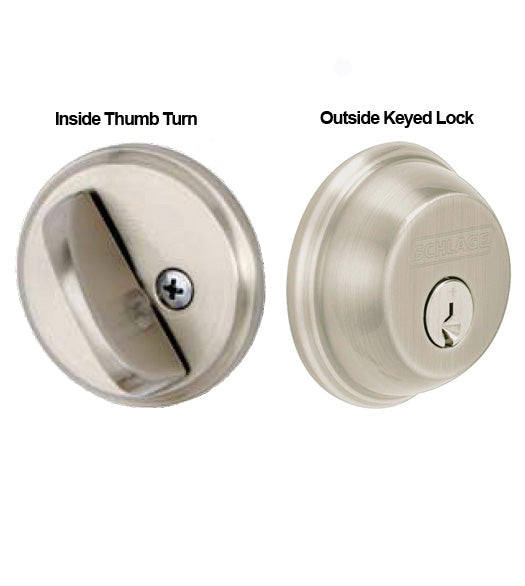

This 2-1/4 Inch Thick Door Single Cylinder Deadbolt will fit all standard door cutouts. For use on 1-3/4" - 2-1/4" thick doors or gates. It has an adjustable latch to fit 2-3/8 inch or 2-3/4 inch backsets. ANSI Grade 1 deadbolt, operated by a key on the outside of the door and by a thumbturn on the inside. Available in 8 finishes.

Also available: B60/61073 Deadbolt For Extra Thick Doors and Thick Door Locks

These deadbolts are bigger and stronger than they were before. They are ANSI Grade 1--the toughest ANSI grade available. Sturdy construction paired with innovative features that provide added control, security and peace of mind.

Features of the DB60/61072 2-1/4" Thick Door Deadbolt:

• High Security Deadbolts.
• Door frame strike reinforced with 3" screws for extra security.
• ANSI A156.5, 2001, Grade 1 auxiliary lock.
• Comes packaged with two keys.
• 1" deadbolt with hardened steel core.
• Has an anti-pick shield around the cylinder
• Solid brass cylinder and trim.
• Installation Instructions (PDF)

Specifications of the DB60/61072 2-1/4" Thick Door Deadbolt Lock:

• Door Thickness: 1-3/4" - 2-1/4" Thick Door
• Fits 2-1/8" and 1-1/2" Bore Hole
• Adjustable deadbolt fits both 2-3/8" and 2-3/4" backsets.
• Housing Diameter: 2.420"
• Strike Width: 1-1/8"
• Strike Length: 2-3/4"
• Cylinder: 5-pin, Schlage C Keyway

Single Cylinder Deadbolt: Deadbolt thrown or retracted by key from the outside and by turn unit on the inside. Bolt automatically deadlocks when fully thrown.

Note: For use with 1-3/4" - 2-1/4" Thick Doors. For standard 1-3/4" thick doors use this Single Cylinder Deadbolt

Sold Individually
