Doorware.com 24 Inch Matte Black Revena Offset Door Pull
Click to enlarge

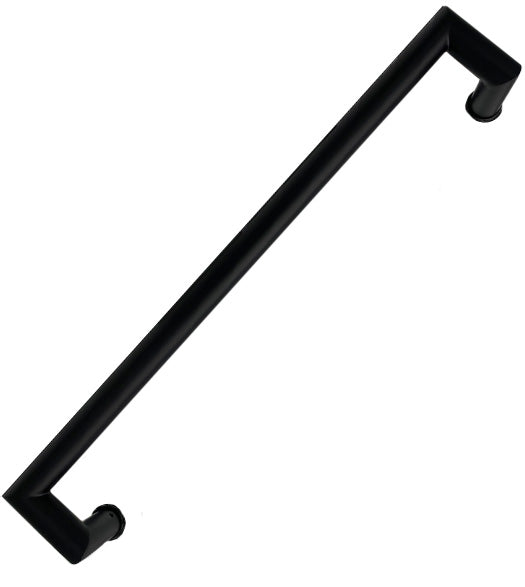

24 Inch Matte Black Revena Offset Door Pull

$269.00

Vendor: AHI
SKU: DWD-RDOPULL24-622-META
Type:


FREE GROUND SHIPPING ON ALL ORDERS ABOVE $250.00!
Matte Black Revena Offset 24 Inch Door Handle

Made from durable stainless steel, the 24 Inch Matte Black Revena Offset Door Pull is available in back to back mounting, thru-bolt mounting, or surface mounting. At 2 feet in length, this standard sized door pull is a good choice for most commercial and residential applications. It is available to fit doors up to 3 inches thick. The finish of Matte Black Revena Offset 24 Inch Door Handle is rich--a true black.

Need a different size? 12 Revena Inch Door Pull or 36 Revena Inch Door Pull

Specifications of the Round Offset Doorware Designs RDOPULL24-622:

    ADA Compliant Handicap Logo
  • Material: 304 Grade Stainless Steel
  • Finish: Matte Black
  • Total Length: 25-1/4" (642mm)
  • Mounting Centers: 24" (610mm) C/C
  • Grip Diameter: 1-1/4"
  • Offset: 3"
  • Projection: 4"
  • Door Thickness: for doors up to 3" thick
  • Can be installed on fiberglass, wood, glass, and metal doors.
  • ADA Compliant
  • Comes packaged with removable round rosettes.
  • DWD-RDOPULL24 Specifications (PDF)

When Selecting a Mounting Hardware:

  • Thru-Bolted Mounting: Pull bolts through the door.
  • Surface Mounting: Pull screws to the face of the door.
  • Back to Back Mounting: Pulls bolt to each other through the door. Requires 2 pulls.

Door Pull Mounting Hardware

Sold individually (1 door pull handle). If you order Back-to-Back Mounting please Order 2 Pulls.
