Packaged complete with One (1) Single Action Spring Door Hinge, Allen Wrench, Adjusting Pin, Locking Pin plus #9 x 3/4" Wood Screws and #9-24 x 1/2" machine screws. Utilizes template screw hole pattern for use with wood or metal doors. Available in 10 different finishes.

These adjustable tension spring hinges allow you to determine how much closing force you apply to the door (how hard/fast the door self closes).

The included Allen Wrench Tool is use to adjust spring tension. The Locking Pin holds the Spring in tension after it is set.

Also available: 3-1/2" x 3-1/2" Stainless Steel Spring Hinge

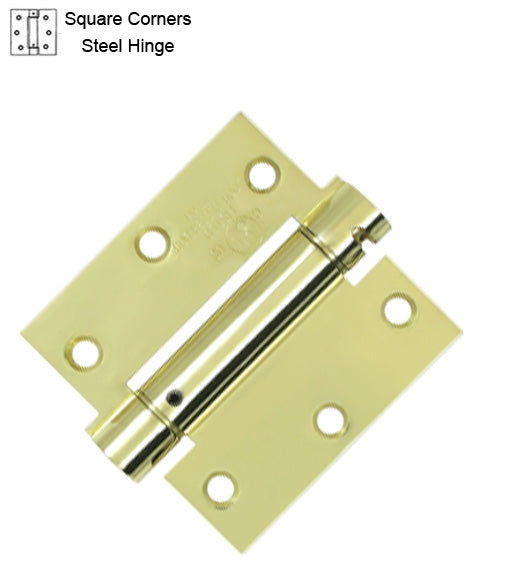

Specifications for the Deltana DSH35U Spring Door Hinge:

• Hinge Material: Durable Steel
• Height: 3-1/2"
• Width: 3-1/2"
• Corners: Square Corners
• Thickness: 0.097" (Residential)
• Standard Template Hole Pattern
• Certified: R19063 UL Listed Door Closer Body 57YM
• Wood Screws: #9 x 3/4"
• Machine Screws: #9-24 x 1/2"
• Deltana DSH35U Hinge Specifications (PDF)
• Deltana Spring Hinge Installation Instructions (PDF)

Sold Individually.
