4 x 4.215 x 5/8 Radius x Sq Corner Johnson Door Spring Hinge, Pair, Bommer LB4333-400
$58.16
$35.87
Vendor: Bommer
SKU: BOM-LB4333-400-633
Type:
FREE GROUND SHIPPING ON ALL ORDERS ABOVE $250.00!

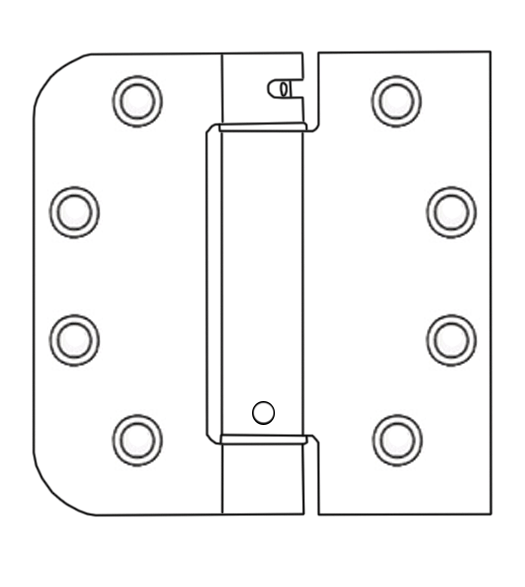

Bommer LB4333-400, 4" x 4.215" x 5/8" Radius x Sq Corner Johnson Door Spring Hinge
Special door hinge size and hole location designed to fit preparation of door and frame manufactured by Johnson Door. Pivot point aligns with residential butt hinges gage .085 to .109
Easily adjustable Spring Tension. UL Listed for fire door applications. Fits Johnson Door Frame. Packaged with mounting screws.
|
Specifications for Bommer LB4333-400 Johnson Door Spring Hinge
- Hinge Material: Durable Steel
- Height: 4"
- Width: 4.215"
- Corner: 5/8" Radius Leaf
- Corner: Square Corner Leaf
- Thickness: .096"
- Number of Holes: 8
- Wood Screws: #10 x 3/4"
- Machine Screws: #10-24 x 1/2"
- BHMA Certified Grade 1 for 1 million cycles.
- UL Listed R-4667 653M
- Adjustable Spring Torque
- Non-Handed
- Special Hole Template - Johnson Door
- Bommer LB4333-400 Dimensions Diagram (PDF)
Sold as a pair (2 Hinges).
** This item is being discontinued. Very limited quantities available.
