Special door hinge size and template hole location designed to fit preparation of door and frame manufactured by Pease (Evercloser by Pease Doors). Pivot point aligns with residential butt hinges gage .085 to .109

Also see: Bommer Special Size Spring Hinges.

Easily adjustable Spring Tension. UL Listed for fire door applications. Fit Pease Door Frame. Packaged with mounting screws.

Specifications for Bommer LB4342-400 Pease Door Spring Hinge:

• Hinge Material: Durable Steel
• Height: 4"
• Width: 4-5/64"
• Corner: 5/8" Radius
• Thickness: .096"
• Number of Holes: 8
• Wood Screws: #10 x 3/4"
• Machine Screws: #10-24 x 1/2"
• BHMA Certified Grade 1 for 1 million cycles.
• UL Listed R-4667 653M
• Adjustable Spring Torque
• Non-Handed
• Special Hole Template - Pease Door

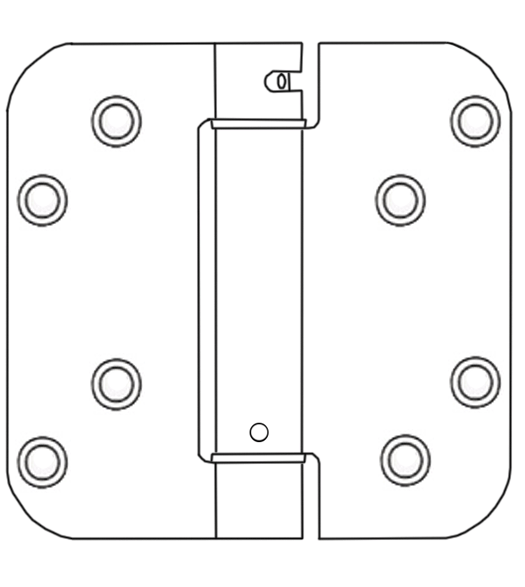

• Bommer LB4342-400 Dimensions Diagram (PDF)

Sold as a pair (2 Hinges).

** This item is being discontinued. Very limited quantities available.
