Special door hinge template hole location designed to fit preparation of door and frame manufactured by Perma-Door. Pivot point aligns with residential butt hinges gage .085 to .109

Also see: Bommer Special Spring Hinges.

Easily adjustable Spring Tension. UL Listed for fire door applications. Fit Perma-Door Frame. Packaged with mounting screws.

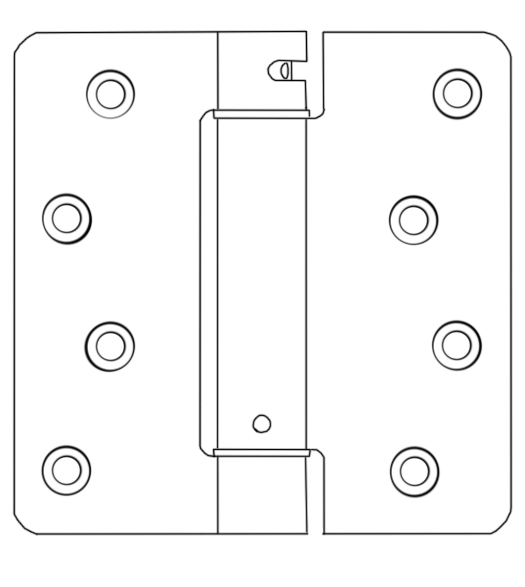

Specifications for Bommer LB4321-400 Perma-Door Spring Hinge

• Hinge Material: Durable Steel
• Height: 4"
• Width: 4"
• Corner: 1/4" Radius
• Thickness: .096"
• Number of Holes: 8
• Wood Screws: #10 x 3/4"
• Machine Screws: #10-24 x 1/2"
• BHMA Certified Grade 1 for 1 million cycles.
• UL Listed R-4667 653M
• Adjustable Spring Torque
• Non-Handed
• Special Hole Template - Perma-Door
• Bommer LB4321-400 Dimensions Diagram (PDF)

Sold as a pair (2 Hinges).

** This item is being discontinued. Very limited quantities available.
