For use with doors manufactured by Bench Mark. Utilizes a special zig-zag screw hole pattern for use with Benchmark Doors.

Packaged complete with One Single Action Spring Door Hinge, Allen Wrench, Adjusting Pin, Locking Pin plus #10 x 1" Wood Screws and #10-24 x 1/2" machine screws.

The included Allen Wrench Tool is use to adjust spring tension. The Locking Pin holds the Spring in tension after it is set.

These adjustable tension Benchmark door spring hinges allow you to determine how much closing force you apply to the door (how hard/fast the door self closes).

Also available: 4 Inch Benchmark Door Hinge

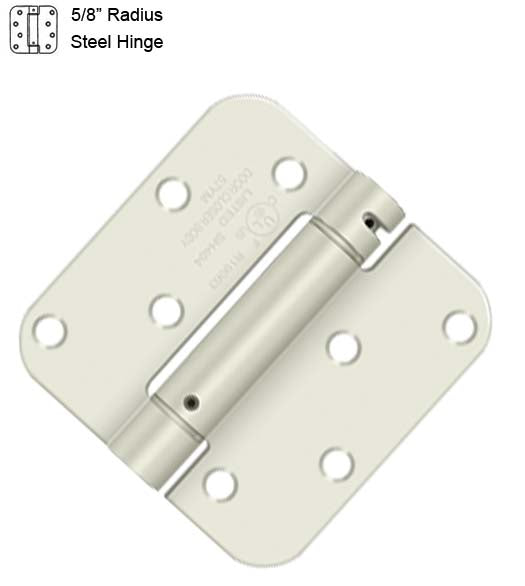

Specifications of the 4" Benchmark Door Spring Hinge:

• Hinge Material: Durable Steel
• Height: 4"
• Width: 4"
• Corners: 5/8" Radius
• Thickness: 0.097" (Residential)
• Bench Mark Door Zig-Zag Hole Pattern
• Wood Screws: #10 x 1"
• Machine Screws: #10-24 x 1/2"
• Deltana DSH4R5BM Benchmark Hinge Specifications (PDF)

We offer different finishes for this Benchmark spring hinge, but no matter which finish you choose, the parts will still be High Quality Durable Steel.

Sold Individually.
