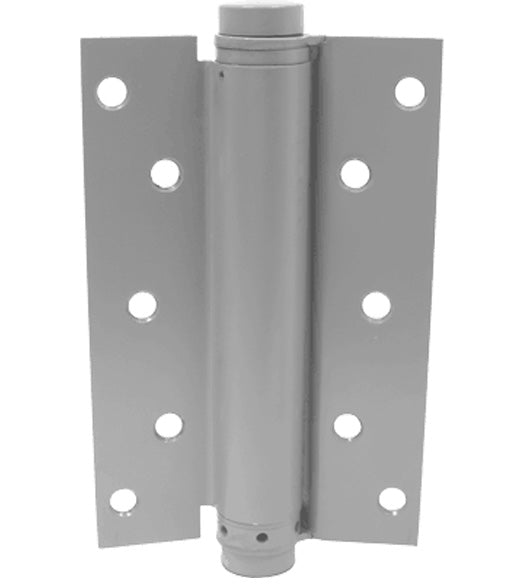

6 Inch Single Acting Spring Hinge, Pair, PBB SA8160
$102.90
$84.39
Vendor: Doorware.com
SKU: PBB-SA8160-652
Type:
FREE GROUND SHIPPING ON ALL ORDERS ABOVE $250.00!
PBB SA8160, 6" Single Acting Spring Hinge
Packaged complete with a Pair (2) Single Action Spring Door Hinges plus #12 x 1-1/4" wood screws and 12-24 x 1/2" machine screws. Non-template screw hole pattern for use on metal or wood doors (ANSI K81011F). This is a replacement for Bommer 4010-6-600 hinge.
Specifications for the PBB SA8160 6" Spring Hinge:
- Hinge Material: Durable Steel
- Height: 6"
- Width: 4-1/2â€
- Corners: Square Corners
- Gauge of Metal: .100
- Screws size: FHMS - 12-24 x 1/2†and FHWS - 12 x 1-1/4â€
- Door Weight: 125 lbs
- Door Thickness: 1-1/4" - 1-3/4" Thick Doors
- Non-Handed
- BHMA Certified Grade 2.
- UL Listed For Fire Rated Door Applications
- Full Mortise - ANSI K81011F
- PBB SA8160 Dimensions Diagram (PDF)
| PBB-SA8170 Hinge Selection for Maximum Door Size | |||||
| PBB Hinge Number | 2 Hinges | 3 Hinges | Door Thickness | ||
| Door Weight | Door Width | Door Weight | Door Width | ||
| SA8160 | 125 lbs | 3'-0" | 155 lbs | 4'-0" | 1-3/4" |
| Replacement for Bommer 4040-6 and 4010-6 | |||||
Sold as a pair (2 Hinges).
