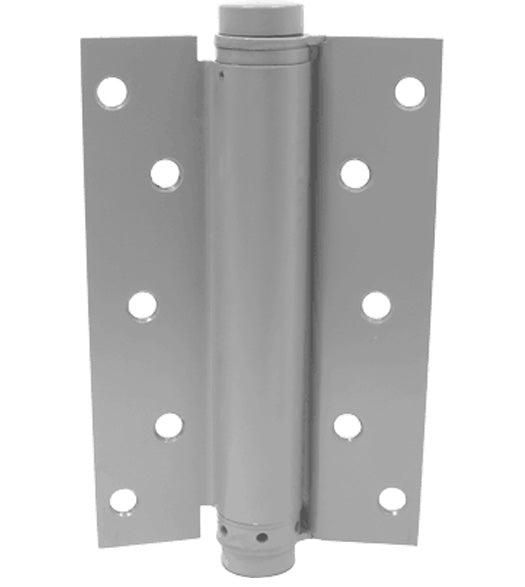

7 Inch Single Acting Spring Hinge, Pair, PBB SA8170
$115.50
$92.99
Vendor: Doorware.com
SKU: PBB-SA8170-600
Type:
FREE GROUND SHIPPING ON ALL ORDERS ABOVE $250.00!
PBB SA8170, 7" Single Acting Spring Hinge
Packaged complete with a Pair (2) Single Action Spring Door Hinges plus #12 x 1-1/4" wood screws and 12-24 x 1/2" machine screws. Non-template screw hole pattern for use on metal or wood doors (ANSI K81011F). This is a replacement for Bommer 4040-7-600 hinge.
Specifications for the PBB SA8170 7" Spring Hinge:
- Hinge Material: Durable Steel
- Height: 7"
- Width: 4-1/2â€
- Corners: Square Corners
- Gauge of Metal: .100
- Screws size: FHMS - 12-24 x 1/2†and FHWS - 12 x 1-1/4â€
- Door Weight: 175 lbs
- Designed for 2" stock hollow metal or wood doors.
- Non-Handed
- BHMA Certified Grade 2.
- UL Listed For Fire Rated Door Applications
- Full Mortise - ANSI K81011F
- PBB SA8170 Dimensions Diagram (PDF)
| PBB-SA8170 Hinge Selection for Maximum Door Size | |||||
| PBB Hinge Number | 2 Hinges | 3 Hinges | Door Thickness | ||
| Door Weight | Door Width | Door Weight | Door Width | ||
| SA8170 | 130 lbs | 3'-6" | 175 lbs | 4'-0" | 2" |
| Replacement for Bommer 4040-7 and 4010-7 | |||||
Sold as a pair (2 Hinges).
