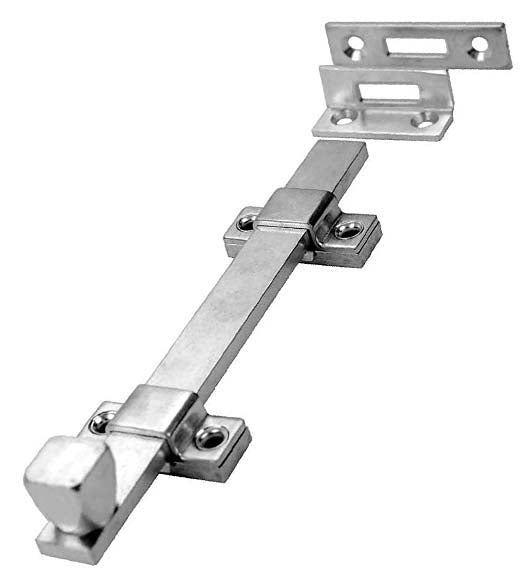

These 8" surface mounted door bolts are made of steel and are UL Listed for fire doors. Available in Brushed Chrome, Polished Brass or Oil Rubbed Bronze finishes.

Also available: Longer 12" Slide Bolt

Specifications of the Don-Jo 1580 Door Slide Bolt:

• Bolt Length: 8"
• Bolt Width: 3/4"
• Bolt Thickness: 1/4"
• Bolt Projection: 3/4"
• Max Projection at Knob: 1-3/8"
• Bolt Throw: 1-1/8"
• Guide Plate Width: 2"
• Mortise Strike Length: 2-7/8"
• Mortise Strike Width: 3/4"
• Rim Angle Strike Length: 2"
• Rim Angle Strike Width: 3/4"
• Material: Steel
• UL Rated
• Don-Jo 1580 Dimensions (PDF)

Packaged complete with mortise strike plate, rim angle strike plate, new guides, and mounting screws.

Sold Individually.
