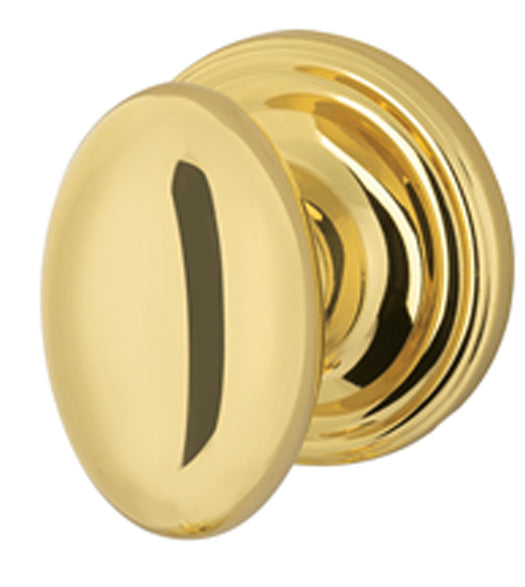

The Auburn Knob with Maguire Rose will fit many standard pre-drilled doors. It is easy to install and will adjust to fit standard door thicknesses of 1-3/8 inches to 1-3/4 inches with backsets of 2-3/8 inches or 2-3/4 inches. The Traditional Auburn Knob with Maguire Round Rose is available in the most popular, classic finish choices. Choose from dummy, passage, privacy, and keyed functions.

Features of the Yale Expressions Auburn Knob with Maguire Rosette:

• Fits standard door cut outs (2-1/8" pre-drilled doors).
• Solid brass knob and trim rose.
• Sold as complete set.
• Easy to install.

Specifications of the Auburn Egg Knob with Maguire Rose:

• Material: Brass
• Knob Height: 1-3/4"
• Knob Projection: 2-3/4"
• Rose Diameter: 2-1/2"
• Door Thickness: adjustable for 1-3/8" - 1-3/4"
• Backset: adjustable 2-3/8" or 2-3/4"
• Handing: non-handed
• Keyed Entry has a Schlage C keyway.
• Yale YMGR-ABN Specifications (PDF)

Available Functions:

• Double Dummy: No door latch. Door knobs on both sides of the door. Knob is surface mounted (rosette screws to the door's face). Package Includes: 2 knobs, 2 roses, and mounting screws.
• Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 knobs, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
• Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Turnbutton on interior knob engages privacy lock on both knobs; emergency release hole is on exterior knob. Package Includes: 2 knobs, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
• Keyed: Guarded latchbolt operated from outside by key; inside by knob. Turnbutton on the interior locks outside knob. Outside knob unlocks by key. Complete set - 2 knobs, 2 roses, 2 keys, door latch and strike plate.

Sold Individually
