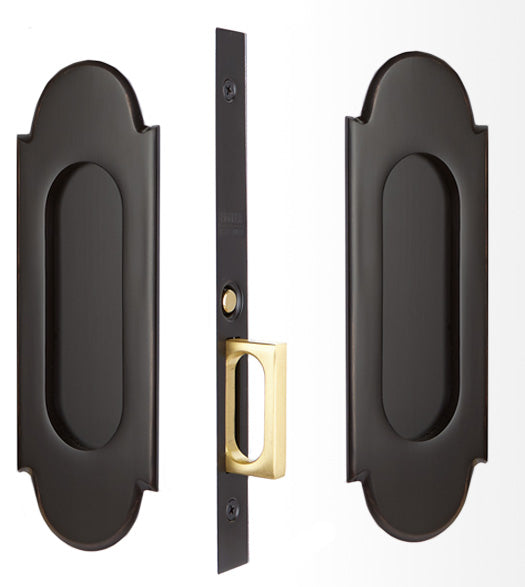

The Empire Arch Pocket Door Passage Set is great for sliding pocket doors as well as barn doors. It comes packaged as a complete set with two arched flush pulls and a mortise box for a finger edge pull. The Edge pull itself is spring loaded and can retract completely into the box for a clean look once installed. When needed, simply press the button, and the edge pull will pop out! The Empire Arch Passage Mortise Pocket Door Hardware has a 1/8 inch face plate projection. Choose from your favorite of Emtek's most stunning finish color options.

Pocket Door Passage Function: This set neither locks nor latches. It features two flush pulls and a mortise box with a built in finger edge pull to help retrieve the door from the pocket.

Also Available Matching: Dummy Set, Privacy Set, and Keyed Entry Function

Specifications of the #8 Sliding Door Trim:

• Face Plate Height: 7-5/8"
• Face Plate Width: 2-7/8"
• Face Plate Projection: 1/8"
• Mortise Box Height: 6-1/4"
• Mortise Box Width: 3-3/8"
• Mortise Box Face Plate Height: 8"
• Mortise Box Face Plate Width: 7/8"
• Finger Grab Dimensions: 7/8"w x 2"h
• Door Thickness: 1-3/8" or 1-3/4"
• Mortise Finger Pull: is thrown by pressing the button on the mortise faceplate. It can be retracted simply by pressing it flush with the faceplate.
• Non-handed
• Emtek 2044 Dimensions Diagram (PDF)

*Sold as a Set: two (2) flush pulls, a passage set mortise pull, and all mounting hardware. For One (1) Door.
