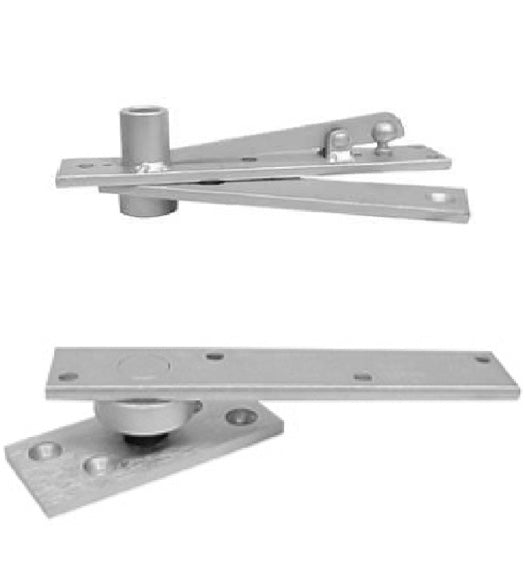

These heavy duty floor mounted center hung door pivots are engineered for durability on interior or exterior doors weighing up to 500 pounds. Set includes ABH 0340 top pivot and bottom pivot with installation hardware.

The bottom door pivot is mounted to the floor. Top pivot is mortised into the door's header. ABH Door Pivots are Made in the USA and available in 8 finishes.

Specifications: for ABH 0370 Center Hung Pivot Hinge

• Door Weight: Up to 500 lbs
• Exterior or Interior Door Size: Up to 4'0" x 8'6"
• Hinge Type: Full Mortise, Center Hung
• Bottom Pivot: Floor Mounted
• Top Pivot: Walking beam type hinge
• Dress plate provided for jamb portion
• Non-Handed, Reversible
• BHMA/ANSI C07032
• ABH 0370 Installation Instructions (PDF)
• ABH 0370 Installation Template (PDF)

*Sold Individually
