Global Door Controls heaviest duty overhead door closer. It is recommend for use on heavy duty commercial, architectural and institutional applications. Closers with non-hold open arms are UL listed R7483 615R for "A" label fire doors.

The unique hole pattern offers a variety of options and features for both new construction and retrofit/tennant improvement installs. Supplied with a full cover, standard duty arm and a parallel arm bracket to accomodate all applications. Comes with all fasteners and brackets in 2 finish choices. A complete line of Global TC4300 Door Closer Accessories is available.

Global Series TC4300 Door Closers are non-handed and have individual adjustments for sweep speed, latch speed, and backcheck cushioning. They are tri packed for regular, top jamb or parallel arm installations and direct fit replacement for a LCN 4041 (LCN 4040 series).

Features and Specifications of Global TC4300 Heavy Duty Door Closer

• Adjustable closing speed
• Adjustable latching speed
• Adjustable back check
• Aluminum Alloy Shell
• Maximum Door Size: 60" interior / 48" exterior
• Maximum Door Weight: 258 lbs
• Spring Tension: Adjustable 1-6
• Tri packed for regular, top jamb or parallel arm mounting
• Non Handed
• Optional Arms: Heavy Duty Arm, Cushion Arm or Hold Open Arm
• ANSI/BHMA A156.4 ADA Compliant
• UL 10C Compliant
• Includes Slim Line Cover
• Grade 1 Certified
• 25 Year Manufacture Warranty

The TC4300 is ADA Compliant offering adjustable spring power sizes 1 - 6 for use on interior doors requiring less than 5 lbs. of opening force and exterior doors requiring less than 8.5 lbs.

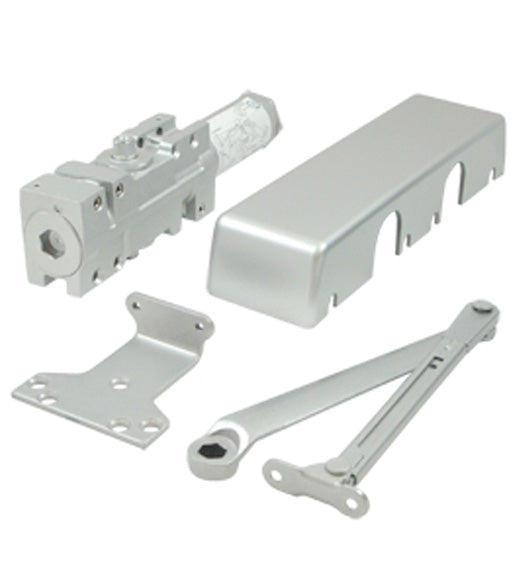

NOTE: the standard arm shown in the upper right product image is included.

You can also add an optional Heavy Duty Arm, Cushion Arm or Hold Open Arm below:
