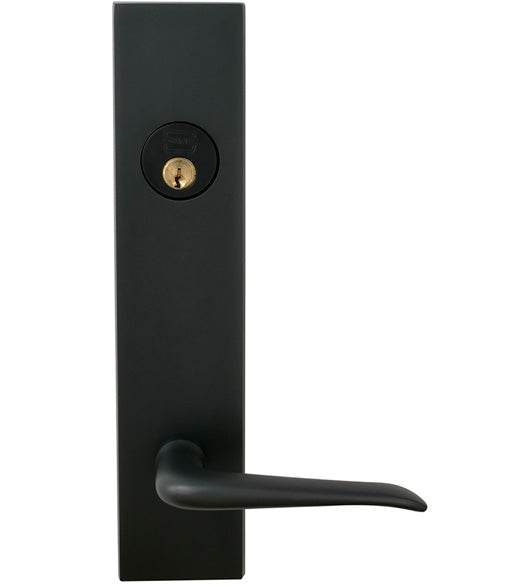

The Modern Lever Entry Door Lockset has a very sleek design that makes it a great choice for contemporary homes. It will fit most predrilled doors with 5-1/2 inch mounting centers. The Modern Entry Lockset is available in an array of modern finishes. Choose from dummy or a single cylinder function.

Also available matching Modern Door Lever

Features of the Modern Lockset:

• Keyway: Schlage "C"
• Will fit standard 2-1/8" door preparations.
• Will fit narrow stiles. For Door with a 2-3?8” backset, stile width can be as narrow as 3-5?8”

Specifications for the Omnia D12042 Modern Lever Lockset:

• Material: Brass
• Height: 10-9/16"
• Width: 2-3/8"
• Bore Hole Spacing (distance between deadbolt and lever latch): 5-1/2" Center to Center
• Doors Thickness: 1-3/4" - 2" Thick Doors (Contact Us if doors are thicker)
• Backset: 2-3/8" or 2-3/4"
• Deadbolt: Full 1" Throw, Solid Brass with saw-proof Insert.
• Strike: "T" strike
• Each set contains door levers, backplates, latches, spindle, and all necessary screws and templates. Key functions are supplied with lock cylinder/s and turnpiece as applicable.
• Omnia Entry Lockset Dimensions & Specs (PDF)

Available Functions

• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
• Single Cylinder: From the exterior, a lever operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.
