For Adams Rite 4510 style mortise deadlatch including Global GLO-TH1103 Deadlatch. Available in Aluminum or Dark Bronze finish. Packaged with mounting screws.

There are 3 basic applicable door styles: Radius, Flat, and Bevel.

When choosing the face plate, there are several plate profiles as illustrated below. Flat, Left Hand (L.H.) Bevel, Right Hand (R.H.) Bevel, Radius, and Radius with Weatherstrip.

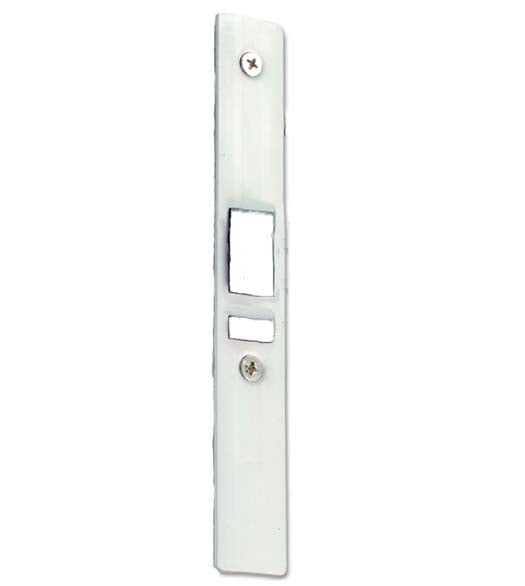

Specifications for the Global TH1100-FP11-15 Mortise Deadlatch Faceplate

• Overall Length: 6-7/8"
• Width: 1"
• Latch Hole: 1" x 5/8"
• Mounting Hole Center to Center: 3-3/4"
• Center of Top Mounting Hole to Top Of Plate: 5/8"
• Center of Bottom Mounting Hole to Bottom Of Plate: 2-7/16"

Beveled plates are handed. Handing Guide.
