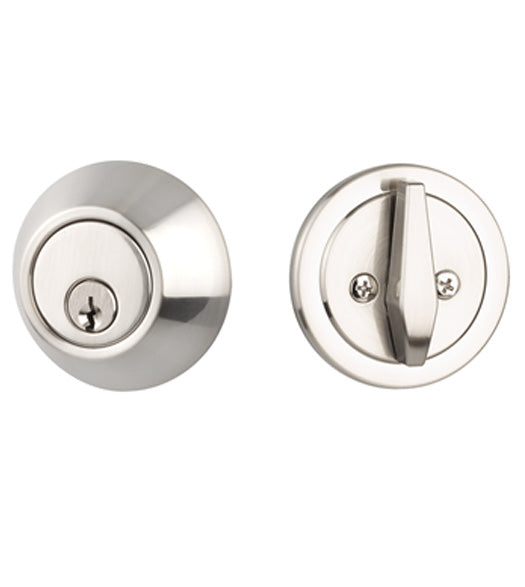

From the Yale Expressions Residential collection, the Single Cylinder Maguire Deadbolt is a simple door lock made with easy installation in mind. It will fit most pre-drilled doors that are 1-3/8 inches thick to 1-3/4 inches thick with 2-3/8 inch or 2-3/4 inch backsets. Choose from traditional finish colors for the Maguire Deadbolt.

Single Cylinder: The deadbolt is thrown and retracted by a key from exterior and by a thumb turn from the interior

Features of the Yale Expressions Maguire Single Cylinder Deadbolt:

• Keyway: Schlage C
• Solid brass collar and rosette.
• Hardened steel bolt.
• Packaged with a extension collar for thin doors.
• Will fit standard 2-1/8" door preparations.

Specifications of the Maguire Door Lock:

• Diameter: 2-1/2"
• Exterior Projection: 15/16"
• Interior Projection: 7/8"
• Door Thickness: adjustable for 1-3/8" - 1-3/4"
• Backset: adjustable 2-3/8" or 2-3/4"
• Handing: non-handed
• Keyway: Schlage C
• Yale YMGR32 Specifications (PDF)

Sold Individually
