Global Series TC300 Series Door Closers are an economically priced door closer for use on interior or lightweight exterior door applications. Its compact design has the features and appearance of a full size closer but requires less space on a door for installation, and provides complete functionality for any opening.

The TC300 Series are commonly used on projects that specify multiple interior closers to address job conditions and budget concerns. They are an excellent choice for hotels, condominiums, apartment complex and single-family residences.

Global Series TC300 Door Closers are non handed and can be mounted on regular, top jamb or parallel arm installations. They fit 6-3/8" x 3/4" mounting hole pattern and packaged complete with wood and machine screws.

Available in 3 Spring tensions: Light #2, Medium #3, and Heavy #4.

Features of the TC300 Door Coser:

• Adjustable closing speed
• Adjustable latching speed
• Aluminum Alloy Shell
• Closer Body Length: 7"
• Horizontal Mounting Holes: 6-3/8"
• Vertical Mounting Holes: 3/4"
• Includes Parallel Mount Bracket
• Non Handed
• Grade 3 Certified
• 10 Year Warranty

Specifications for TC302-PA Light #2:

• Maximum Door Weight: 137 lbs
• Maximum Door Size: 32" interior

Specifications for TC303-PA Medium #3:

• Maximum Door Weight: 155 lbs
• Maximum Door Size: 36" interior / 30" exterior

Specifications for TC304-PA Heavy #4:

• Maximum Door Weight: 243 lbs
• Maximum Door Size: 44" interior / 36" exterior

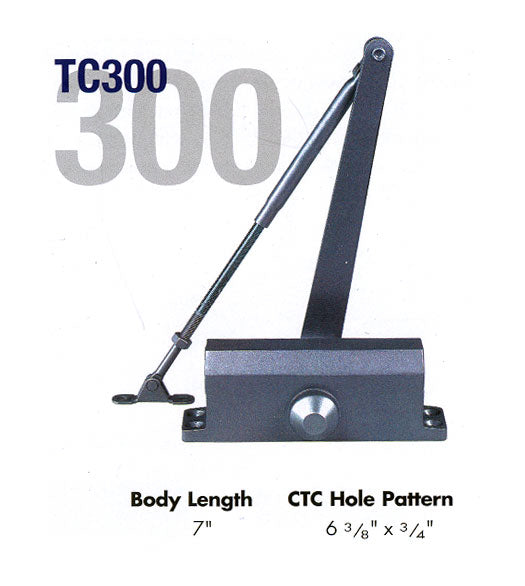

NOTE: the standard arm shown in the upper right product image is included, as well as the bracket below.
