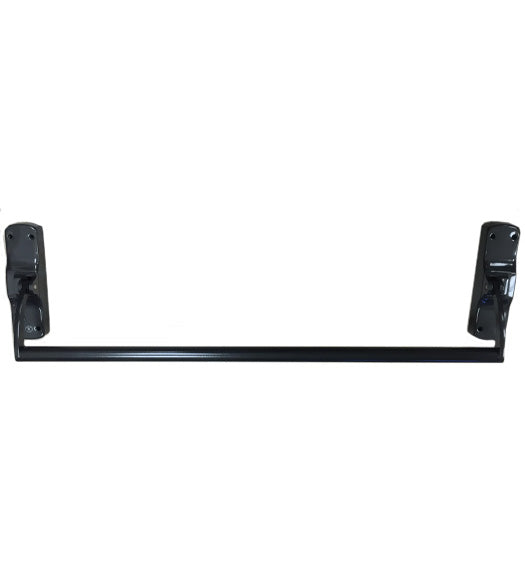

Global Series ED-301-48 wide door crash bar style exit devices are suitable for medium or wide stile aluminum and hollow metal doors including store front glass doors.

They have a 1" diameter round cross bar that will fit doors up to 54" wide and can be field sized to accommodate narrow doors.

Features and Specifications for the Global ED-301-48 Crash Bar Exit Device:

• Mount Width: 2-5/32"
• Mount Height: 7-15/16"
• Material: 1" diameter round steel cross bar, stainless steel springs
• Latch: 1-1/4" wide x 7-1/4" long with 1/2" stainless throw
• Backset: 2-3/32" from face of stop to center line of device
• Strike: Rim mounted roller strike with shim
• Projection: 4-1/2"
• Stile: 2-5/32" minimum
• Handing: Non Handed (Reversible for Left or Right Hand Doors)
• Door Thickness: 1-3/4" - 2-1/4"
• Door Width: Up to 54"
• Mounting Height: Recommended installation at 39-13/32" from floor to center line of latch or strike assemblies
• Fasteners: Furnished with sheet metal, machine screws and shoulder mounting studs with set screws
• Cylinder: Optional Rim Cylinder or Mul-T-Lock High Security Rim Cylinder
• Dogging: Inside - thumbturn dogging
• Grade 2
• UL Listed (45R7) for Panic Hardware
• Manufactures Warranty: 1 Year

Available Exterior Trim:

• Rim Cylinder Lock: Night Latch Function (ANSI F03) - Unlatch (Open) door from exterior with Key. Key removable only when locked.
• High Security Rim Cylinder: Night Latch Function (ANSI F03) - Unlatch (Open) door from exterior with Key. Key removable only when locked.
• Escutcheon Plate Keyed Classroom Lever: Classroom Function (ANSI F08) - Outside lever locked and unlocked by Key. Escutcheon Plate (2-1/2" wide x 8-7/8" high) with ADA compliant Lever.

This Exit Device is available in Aluminum or Dark Bronze finish.
