Kit to convert doors from a Mortise Deadbolt to a Deadlatch with Push / Pull Paddle Handle. Paddle is 4-way reversible. Handing can easily be reversed on cam plug by removing C-clip and flipping the cam over and reinstaling C-clip.

If you need a new Lock Cylinder use Conversion Kit with Lock Cylinder or Conversion Kit with High Security Lock

Specifications: for Mortise Deadlatch

• Backset 31/32", 1-1/8" or 1-1/2"
• Handed, Field Reversible
• Face plate: 1" width x 6-7/8" Length - Aluminum
• Case Dimensions: 7/8" width x 6" Lenth, Depth specific to backset (1.63" - 1.78").
• Latchbolt: 1/2" width x 1.0" length x 1/2" Throw
• Global TH1103 Dimensions (PDF)

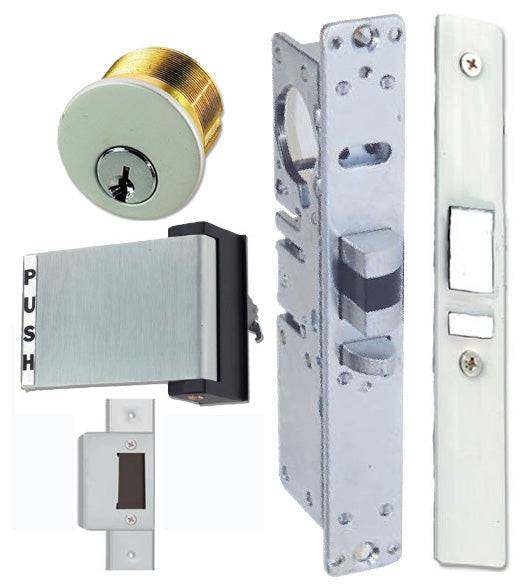

Package Includes

• Push / Pull Handle
• Mortise Deadlatch Body
• Flat Face Plate
• Strike Plate Assembly
• Includes cylinder set screws, trim and mounting screws

Available in Aluminum or Dark Bronze finish for trim.

This Exit Devise is available in Aluminum or Duronotic (Dark Bronze) finish. Outside trim is always Aluminum finish.

*Important When selecting Door Hand for this exit device:
1. Stand on the Push Side of the door, facing the door.
2. If the "Pivot Hinge" is on your "Left", choose "Left Hand Door".
3. If the "Pivot Hinge" is on your "Right", choose "Right Hand Door".
