Center Hung Top Pivot Hinge, ABH 0320
$133.80
$111.20
Vendor: ABH
SKU: ABH-0320-0320-S5
Type:
FREE GROUND SHIPPING ON ALL ORDERS ABOVE $250.00!

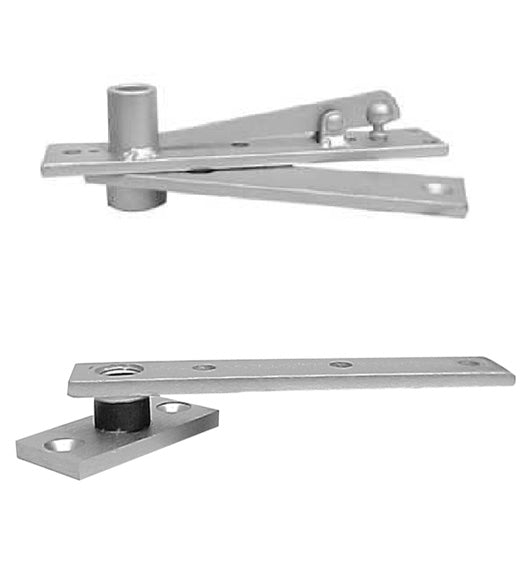

ABH 0320 Center Hung Top Pivot Hinge
This medium duty center hung top pivot hinge (for the top of the door only) is engineered for durability on standard doors. These are used standard with most center hung ABH Mfg Door Pivots including ABH 0127 Door Pivot and ABH 0128 Door Pivot.
Set includes top pivot, dress plate for jamb portion of door and installation hardware. ABH Door Pivots are Made in the USA to insure high quality.
Specifications: for ABH 0320 Top Door Pivot
- Door Weight: Up to 250 lbs
- Door Arm Length: 5-9/32"
- Door Arm Thickness: 1/4"
- Hinge Type: Full Mortise, Center Hung
- Walking beam type hinge
- Dress plate provided for jamb portion
- Non-Handed, Reversible
- BHMA/ANSI C06013/3500
- ABH 0320 Installation Template (PDF)
*Sold Individually
