These 3/4" offset intermediate pivots are engineered for durability on extra heavy doors or lead lined doors. Set includes intermediate pivot with installation hardware. ABH Door Pivots are Made in the USA to insure high quality.

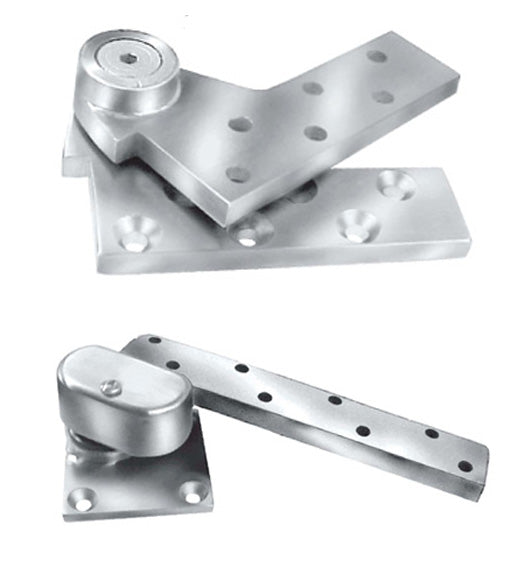

These are used in conjunction with ABH L0147 Extra Heavy Door 3/4 Inch Offset Pivot Set.

Specifications: for ABH L019 Intermediate Door Pivot

• Offset: 3/4"
• Door Weight: Up to 1000 lbs
• Hinge Leaf Height: 5"
• Hinge Leaf Width: 1-1/8"
• Total Hinge Width: 4-1/4"
• Hinge Type: Full Mortise
• Supplied with needle bearings
• US32D model UL listed for use on 3 hour fire doors
• BHMA/ANSI C07321/3525
• Handed - Must specify left hand door or right hand door when ordering
• ABH L019 Installation Instructions (PDF)
• ABH L019 Installation Template (PDF)

*Important When selecting Door Hand for this pivot hinge:
1. Stand on the Push Side of the door, facing the door.
2. If the "Pivot Hinge" is on your "Left", choose "Left Hand Door".
3. If the "Pivot Hinge" is on your "Right", choose "Right Hand Door".
