Heavy Door 3/4 Inch Offset Intermediate Pivot Set, ABH 019
$253.60
$211.20
Vendor: ABH
SKU: ABH-019-019-S5
Type:
FREE GROUND SHIPPING ON ALL ORDERS ABOVE $250.00!
ABH 019 Heavy Duty Intermediate Door Pivot Set
These 3/4" offset intermediate pivots are engineered for durability on heavy doors. Set includes intermediate pivot with installation hardware.

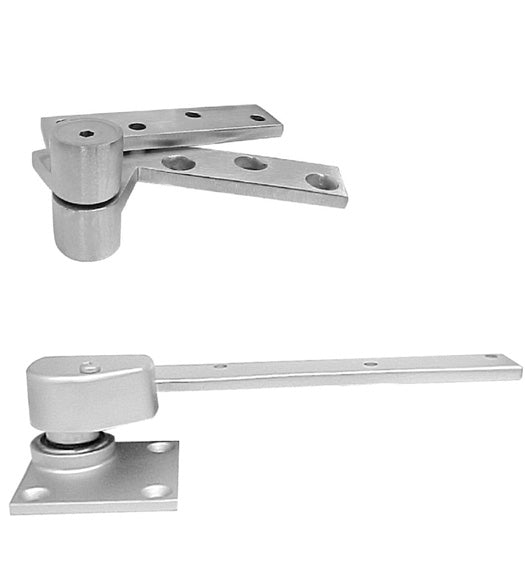

These are used in conjunction with ABH 0147 Heavy Door 3/4 Inch Offset Pivot Set and ABH 0195 Heavy Door 3/4 Inch Offset Pivot Set.
ABH Mfg Door Pivots are Made in the USA to insure high quality & available in 8 finish colors.
Specifications: for ABH 019 Intermediate Door Pivot
- Offset: 3/4"
- Door Weight: Up to 600 lbs
- Hinge Leaf Height: 5"
- Hinge Leaf Width: 1-1/8"
- Total Hinge Width: 4-1/4"
- Hinge Type: Full Mortise
- Supplied with needle bearings
- US32D model UL listed for use on 3 hour fire doors
- BHMA/ANSI C07321/3525
- Handed - Must specify left hand door or right hand door when ordering
- ABH 019 Installation Instructions (PDF)
- ABH 019 Installation Template (PDF)
*Important When selecting Door Hand for this pivot hinge:
1. Stand on the Push Side of the door, facing the door.
2. If the "Pivot Hinge" is on your "Left", choose "Left Hand Door".
3. If the "Pivot Hinge" is on your "Right", choose "Right Hand Door".
