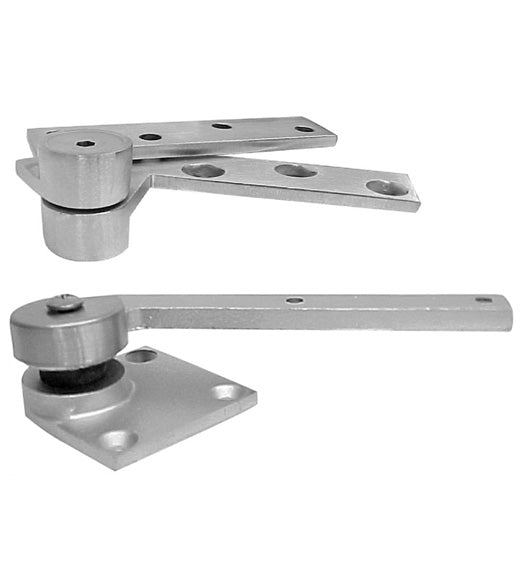

These ABH manufactured jamb mounted 3/4" offset pivots are engineered for durability on heavy doors weighing up to 450 pounds. Set includes top pivot and bottom pivot with installation hardware.

For tall or heavy doors use ABH 019 Intermediate Offset Pivot.

The bottom pivot is mortised into side door jamb (Jamb Mounted) and the doors bottom. Top pivot is mortised into the header and top of the door. ABH Door Pivots are Made in the USA to insure high quality.

Specifications: for ABH 0195 Door Pivot Set

• Offset: 3/4"
• Door Weight: Up to 450 lbs
• Interior or Exterior Door Size: Up to 4'0" x 8'0"
• 3/16" vertical arm adjustment after installation
• US32D model UL listed for use on 3 hour fire doors
• BHMA/ANSI C07162/3530A (modified)
• Handed - Must specify left hand door or right hand door when ordering
• ABH 0195 Installation Instructions (PDF)
• ABH 0195 Installation Template (PDF)

*Important When selecting Door Hand for this pivot hinge:
1. Stand on the Push Side of the door, facing the door.
2. If the "Pivot Hinge" is on your "Left", choose "Left Hand Door".
3. If the "Pivot Hinge" is on your "Right", choose "Right Hand Door".
